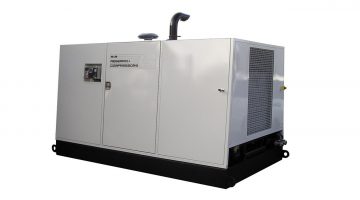

2014 Coupled Engine Compressor – Long Base – CAT C9
Developed for oil and gas pipeline testing markets. This model takes in 2000cfm from 2 feed compressors at 450psi. With its massive coolers and fans, it boosts to 1400psi while keeping the exit air temperature under 50°C. As with all ARC machines, this booster can be tailored a to customers specific requirements.
Standard features
- Canopy clad mounted to base assembly – fork lifted
- On board fuel tank
- Booster bypass manifold (Single Stage)
- Two-way concentric valves
- Automatic scrubber tank drain valve
- Overspeed shutdown valve
- Inlet particle filter
- Water cooled booster block
- Pre-cooler bypass system
- Dual inlet suction manifold
- Discharge temperature sensor
- Reduced air exit temperatures
- Pre-cooler (30°C) & suction scrubber tank
- Aftercooler (60°C) max operating temperature
- Low pressure switch at booster inlet
- 24 volt DC starting and operating system
- Suction and discharge safety relief valves
- Full function instrument panel monitoring all pressures, temperatures and controls with full protection shutdown and fault indicators.
Optional features
- Digital control panel (Booster)
- Open frame configuration
- Top Lift feature
- Extreme cold weather start kit
- Spark arrestor
- Trailer mounted unit
- Lights for night operation
- Engine speed adjustment
- Insulation package to canopy
- Service packs 250/500/1000/2000 hours
- Valve and piston kits
- Other options, pressures, capacities:
available on request - Container and rig safe models as well as other options, capacities and pressures available – consult factory.
Technical Specifications
| Booster type | 6 cylinders, reciprocating |
| Configuration | COUPLED |
| Model | ARC 2014 6V92 C9 |
| Drive engine | CATERPILLAR C9 |
| Power | 350 bhp @ 1800 rpm |
| Booster stages | 1 |
| Max suction pressure (psi / bar) | 450 / 31 |
| Max discharge pressure (psi / bar) | 1400 / 96.5 |
| Capacity at maximum suction pressure (cfm / m3/min / I/sec) | 2000 / 57 / 944 |
| Booster oil capacity (gal / I) | 5.3 / 20 |
| Engine oil capacity (gal / I) | 8.5 / 32 |
| Fuel tank capacity (gal / I) | 171.7 / 650 |
| Max operating ambient temp. (°F / °C) | 125 / 52 |
| Wet weight (lb / kg) - (approximate) | 10692 / 4850 |
| Overall dimensions, L x W x H (in / mm) | 9'10" x 6'11" x 7'6 / 3000 x 2100 x 2300 |
| Suction connection | 50mm ( 2”) BSP |
| Discharge connection | 50mm ( 2”) BSP |
