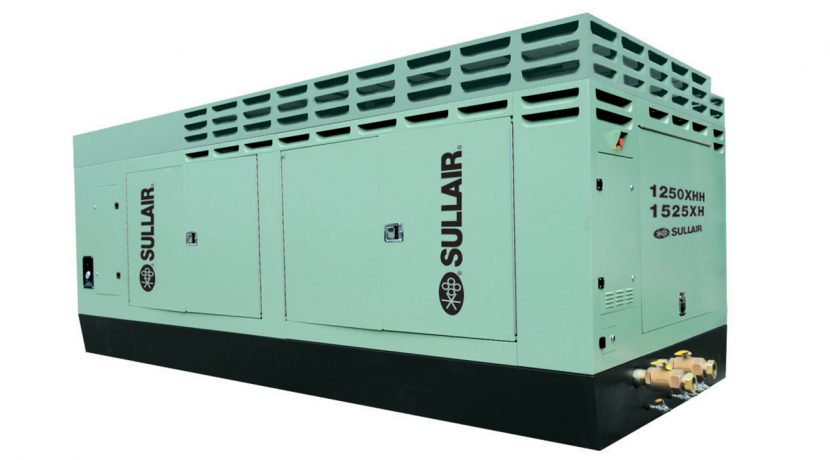

Sullair Portable DLQ1250XHH/ 1525XH Combo

Sullair DLQ1250XHH/ 1525XH Enclosed – Dual Performance 350 / 500psi Sullair SSAI combo

Designed in USA with help from Australia.

Made in Sullair’s China Facility SSAI -Using all major componentry including Running gear from USA, Twin Turbo CAT C18 from USA, Air End from MCI and USA Murphy Controller..

Sullair DLQ1250XHH/ 1525XH Features

  • Rotary screw compressor
  • MURPHY Controller
  • Electronic engine control
  • Environmental protection full-enclosed foundation
  • Protective shutdown switches
  • Silencing hood
  • Remote fluid drains
  • Two- Stage air filters with safety elements
  • AWF Compressor Fluid
  • 0-100% capacity control
  • Remote bulkhead drain valves
  • Auto-Start capability
  • E-Stop control
  • Quick connect fuel couplings
  • Engine block heater
  • Spark arrestor muffler
  • Robust, heavy duty cooling package

Air End Warranty

5-year or 10,000-hour warranty when continuously serviced at the recommended intervals with Sullair AWF Compressor Fluid and filters

Two-Stage Dry Type Air Filters
Filters incorporate safety elements and are positioned to draw cool ambient air

Low Emissions Engine Technology
Complies with Tier 3 and Stage 3 emissions legislation

Technical Specifications

ModelDLQ 1250XHH / 1525XH
Capacity (cfm)1250/ 1525
Capacity (m3/min)38.2/ 43.2
Rated Pressure (psig)500/ 350
Engine MakeCAT C18
Engine Power (bhp)700
Approx Weight (kg)9000
