Sullair Portable Model 375H

Sullair 375H

Sullair 375H Portable Compressor
Sullair 375H

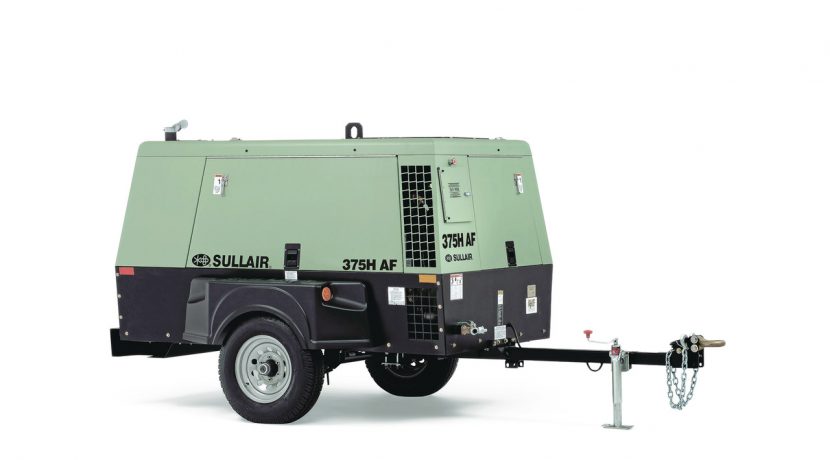

The Sullair 375H rotary screw portable air compressor delivers 375 cfm at 150 psig or 10.6 m3/min at 10 bar. Unit is designed for reliability and total accessibility featuring large side doors for easy maintenance. Powered by either a John Deere or Caterpillar Tier 3 emissions compliant engine. Mounting option is 2-wheel, single axle. Enclosure is made of durable powder coated Galvanneal sheet metal with composite end caps. Other features include independent rubber torsion suspension, wheel bearing grease fittings, and a lockable curbside instrument panel. The compressors feature a pneumatic inlet valve and 0 to 100% capacity control

Sullair 375H Features Trailer Compressor

  • Rotary screw compressor
  • Removable modular canopy
  • E-Z lube axle
  • Large tool box compartment
  • Weather proof instrument panel
  • SSAM- Shutdown System and Annunciation Module
  • Battery disconnect switch
  • Idle warm-up valve
  • Emergency stop
  • Rocker type start switch
  • Protective shutdown switches
  • Fuel/Water separator
  • Three-Stage air filters
  • 0-100% capacity control
  • Pneumatic inlet valve
  • AWF Compressor Fluid
  • Wide track
  • Durable powder coat finish
  • Galvanneal sheet metal
  • Recessed tail lights
  • Rear bumper

375H Optional Features

  • Aftercooler
  • Air filter maintenance indicators
  • Ball hitch
  • Block heater
  • Brakes
  • Cold weather starting aid
  • Ether starting aid (John Deere)
  • Filtration for instrument quality air
  • Fuel level gauge
  • Gauge package (Caterpillar)
  • Hose reels, single and dual
  • Mechanical parking brakes
  • Spark arrestor
  • Special paint
  • Tachometer (Caterpillar)

Sullair Portable Compressors Features

  • Robust Sullair Air- End with five years warranty
  • Portable compressors up to 425 cfm can be towed on the highway
  • Sullair portables are powered by caterpillar and John Deere diesel engines
  • Sullair portables are manufactured in Michigan USA
  • Ease of use control panel
  • High/ Low control switched on all dual pressure models
  • Silenced noise level 76 dBA @ 7 meters
  • Weather proof instrument panel

Technical Specifications

Capacity (cfm)375
Capacity (m3/min)10.6
Rated Pressure (psig)150
Engine MakeCAT C4.4
Engine Power (bhp)130
Approx Weight (kg)2000
